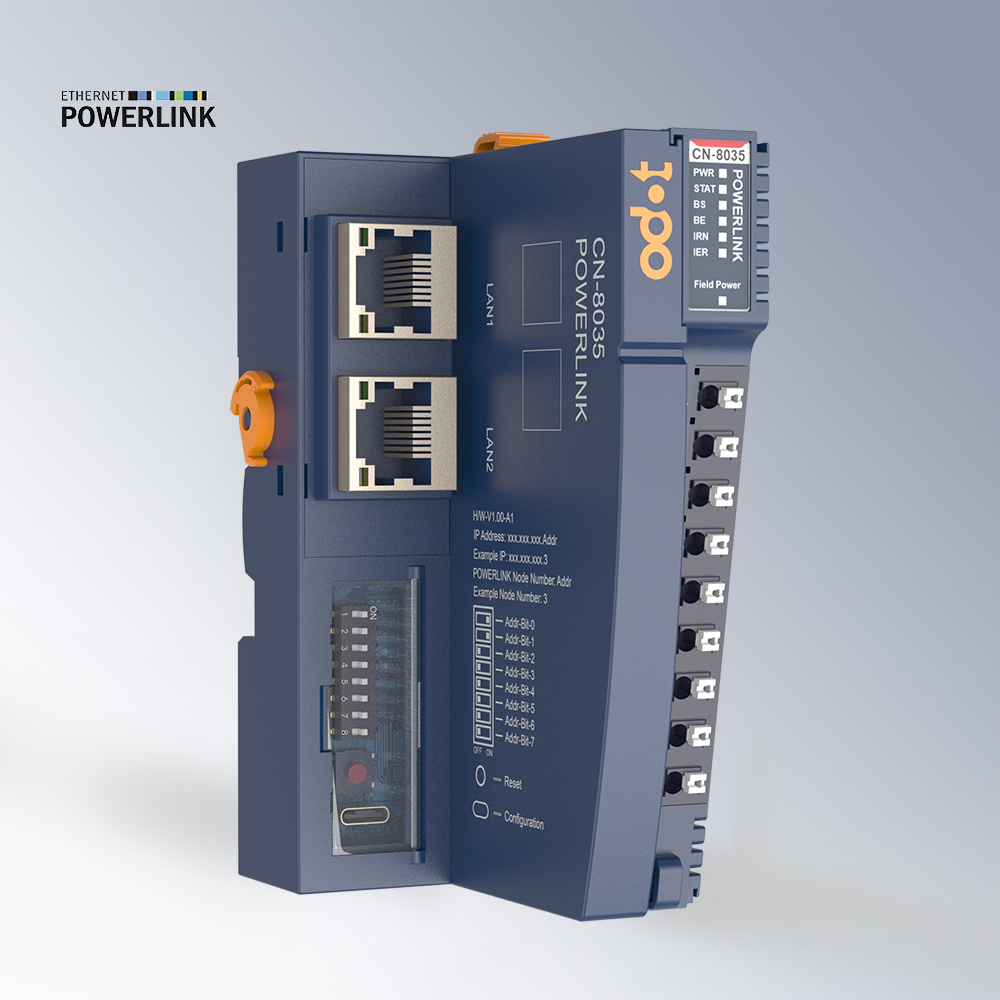

Модель: CN-8035
The file is encrypted. Please fill in the following information to continue accessing it
|
General Parameter |
|
|
System Power |
Power supply: 19.2V~28.8V DC (Nominal 24V DC) |
|
Module Consumption |
110mA@24VDC |
|
Internal Bus Supply |
Max: 2A@5V DC |
|
Isolation |
System power to field power: isolated |
|
Filed Power |
Power supply: 19.2V~28.8V DC (Nominal 24V DC) |
|
Field Power Current |
Max. DC 8A |
|
The Maximum Number of |
32 |
|
Wirring Diameter |
Max.1.0mm²(AWG 18) |
|
Installation |
35mm DIN-Rail |
|
Dimension |
115 mm *51.5 mm *75 mm |
|
Weight |
130g |
|
Environment Parameters |
|
|
Horizontal Installation |
-35℃~70℃ |
|
Vertical Installation |
-35℃~60℃ |
|
Relative Humidity |
5%~95% RH (No Condensation) |
|
Storage Temperature |
-40℃~85℃ |
|
Storage Humidity |
5%~95% RH (No Condensation) |
|
Manufacturing Test |
-40℃~75℃ |
|
Ingress Protection Rating |
IP20 |
|
Vibration Resistance |
Comply with IEC 61131-2, IEC 60068-2-6 |
|
Impact Resistance |
Comply with IEC 61131-2, IEC 60068-2-27 |
|
EMC Performance |
Comply with IEC 61131-2, IEC 61000-4 |
|
POWERLINK Parameter |
|
|
Protocol |
POWERLINK |
|
Communication Interface |
2*RJ45 |
|
Transmission Rate |
100 Mbit/s |
|
Full Duplex |
Support |
|
Automatic Negotiation |
Support |
|
Automatic MDI/MDIX |
Support |
|
Line Length |
Maximum 100m (segment length) between 2 sites |
|
Fieldbus Bytes |
Input: Max.1488 Bytes; |
|
Minimum Cycle |
1ms |
|
Node Configuration |
Support |
|
Default IP Address |
|
